Central venous catheterization allows for an adequate therapy of critically ill patients during complex therapeutic interventions, especially in anesthesia, intensive care and emergency medicine.
?Equipped with Guided Syringe or T-Type introducer
?Sterile product and comes with single use

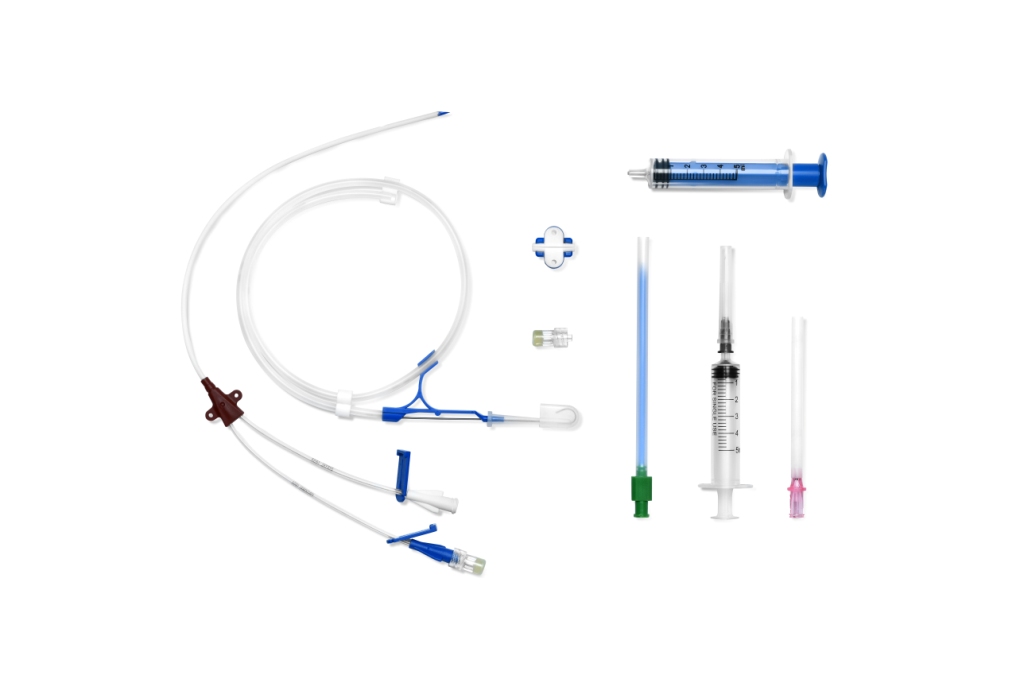

?Contains scalpel,Catheter holder and clamp, indwelling catheter, injection cap, extension line clamp and other necessary equipments;
Specification |
Lumen logo(Ga) |
OD(mm) |
Package |
Carton Size |
G.W |
Shelf life |
|
Single Lumen
|
14 Ga×20(with 0.032"wire) |
14 Ga(Distal) |
2.00±0.20 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
16 Ga×20(with 0.032"wire) |
16 Ga(Distal) |
1.70±0.10 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
18 Ga×13(with 0.025"wire) |
18 Ga(Distal) |
1.35±0.10 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
20 Ga×20(with 0.021"wire) |
20 Ga(Distal) |
1.15±0.10 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
Double Lumen |
8 Fr×20(with 0.035"wire) |
14Ga(Distal) |
2.70±0.20 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
14Ga(Proximal) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
7 Fr×20(with 0.032"wire) |
14Ga(Distal) |
2.40±0.20 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
18Ga(Proximal) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
7 Fr×16(with 0.032"wire) |
14Ga(Distal) |
2.40±0.20 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
18Ga(Proximal) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
5 Fr×13(with 0.021"wire) |
18Ga(Distal) |
1.70±0.10 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
20Ga(Proximal) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
4 Fr×13(with 0.018"wire) |
22Ga(Distal) |
1.35±0.10 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
22Ga(Proximal) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
Triple Lumen |
7 Fr×20(with 0.032"wire) |
16Ga(Distal) |
2.40±0.20 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
18Ga(Medial or Middle) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
18Ga(Proximal) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
5.5 Fr×13(with 0.021"wire) |
20Ga(Distal) |
1.85±0.10 |
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
22Ga(Medial or Middle) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
|
|
22Ga(Proximal) |
|
20 PCS/Carton |
62*42*27 CM |
Appro.6KG |
3 years |
