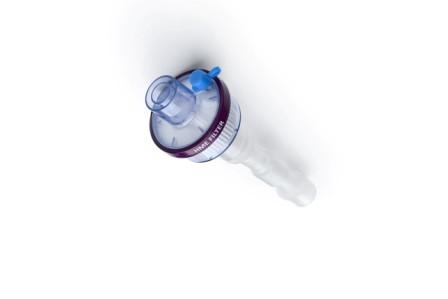

Heat and Moisture Exchanger Filter?(HMEF) combines the efficiency of dedicated breathing filters with optimum moisture return.
? Low dead space, to minimize dangers associated with re-breathing carbon dioxide.
? Lightweight, to reduce additional heavy on the tracheal connection.
? Maximizes the humidity of inspired gases.
| Description | Heat Moisture Exchanger Filter (HMEF) |
| Humidity Output | 31mg/H2O @ VT 500ml |
| Filtration Efficiency |
BFE 99.999% VFE 99.99% |
| Resistance @ 60 LPM | 180pa |
| Dead space | 45ml |
| Tidal Volume Range | 150-1500ml |
| Connections | 22M/15F-22F/15M |
| Gas Monitoring Luer Port with retainer strap | Yes |
| Weight | 30g |
|
Ref |
Specification |
Packing |
Carton size |
G．W |
Shelf Life |
|
A501-2
|
Adult |
100pcs/carton |
37.5*32*34.5cm |
Appro.5KG |
3 years |
|
A501-2S
|
Adult, Contra Angel |
100pcs/carton |
37.5*32*34.5cm |
Appro.5KG |
3 years |
|
A501-3
|
Pediatric |
100pcs/carton |
37.5*32*34.5cm |
Appro.5KG |
3 years |
